Beating Equipments

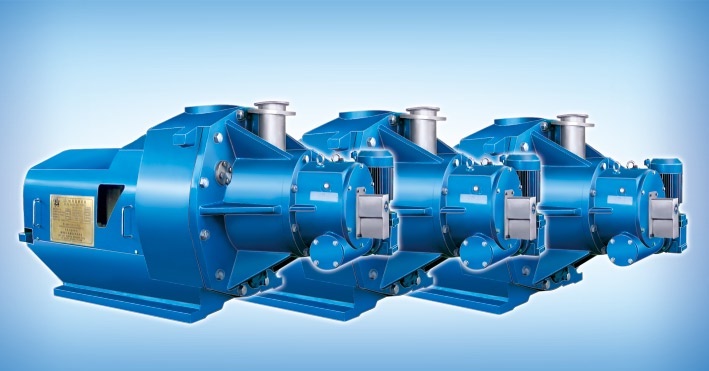

DD Series Double Disc Refiner
Used for continuous beating of chemical wood pulp, mechanical pulp and waste paper pulp, with automatic constant power or constant energy control.
Product Introduction
Used for continuous beating of chemical wood pulp, mechanical pulp and waste paper pulp, with automatic constant power or constant energy control.
| Parameter | Brochure Value |
|---|---|
| Diameter of plate | Φ450, Φ500, Φ550, Φ600, Φ660, Φ720, Φ900, Φ1100 mm |
| Production | 8-80, 10-100, 10-120, 12-150, 15-200, 15-250, 20-400, 40-800 t/d |
| Power range | 90-160, 132-200, 160-250, 185-315, 220-500, 250-800, 315-1000, 400-1800 kW |
| Consistency | 3-5% |
