Complete Line

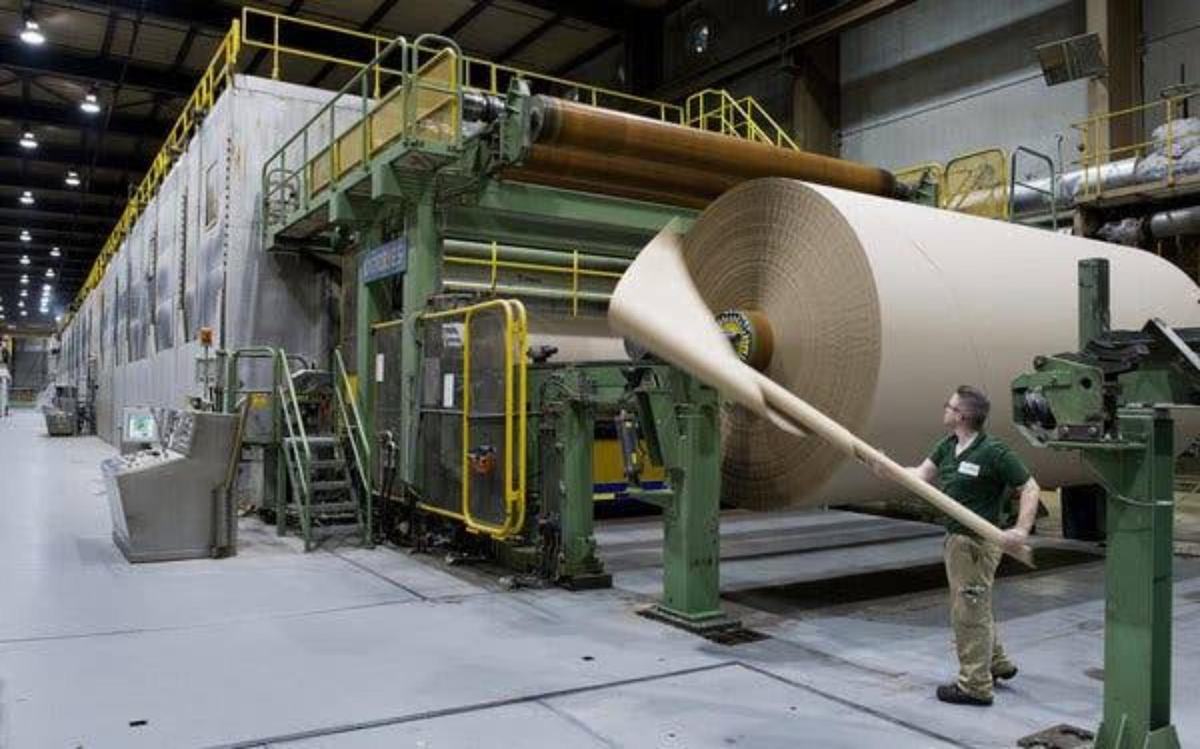

Kraft Paper Machine Line
A complete line solution for kraft paper, fluting, testliner, and corrugated packaging grades, designed around furnish reality, capacity targets, and downstream roll requirements.
Product Introduction
This line is suitable for mills producing corrugated packaging grades where output stability, furnish adaptability, and practical maintenance are key. SEN International can support complete line supply or selected sections depending on project size.
Typical Supply Scope
- Stock preparation and approach flow
- Headbox, wire section, press section, dryer section
- Surface sizing, pope reel, rewinder, auxiliary systems
Application Notes
Often chosen by packaging paper investors, recycled paper mills, and capacity expansion projects that require a stable medium-to-high output line.
| Item | Typical Range |
|---|---|
| Paper grade | Kraft paper, fluting, testliner |
| Basis weight | 70-200 gsm |
| Capacity | 20-500 TPD |
| Trim width | 1760-5600 mm |
| Design speed | 120-800 m/min |
| Raw material | OCC, mixed waste paper, pulp blend |
